Intersection Quick Break

Ribbon: Express Tools > Modify > Intersection Quick Break

Menu: Express > Modify > Intersection Quick Break

Toolbar: Express > Express - Modify > Intersection Quick Break

Keyboard: EBREAK

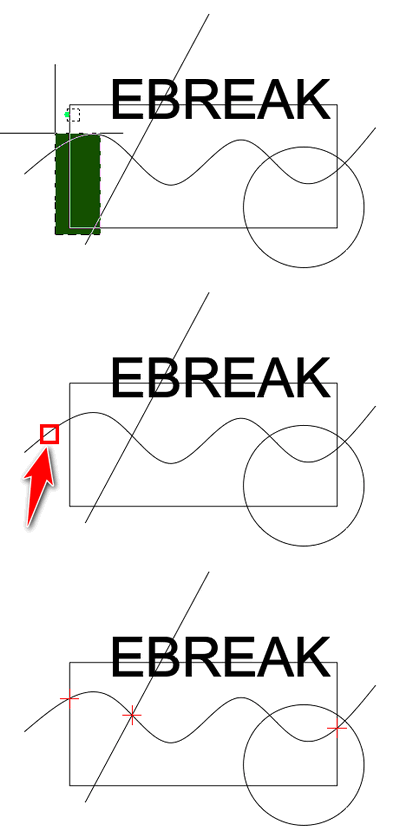

This function allows you to quickly generate intersections break on specific element, related an entities group.

PROCEDURE:

Click on the Express Tools > Modify > Intersection quick break, or type EBREAK and press Enter
Select entities group you need, and confirm it
Select a single entity to break
