WinTopo - Raster to Vector

Menu: Add-On > Raster to Vector WinTopo

Keyboard: WINTOPO

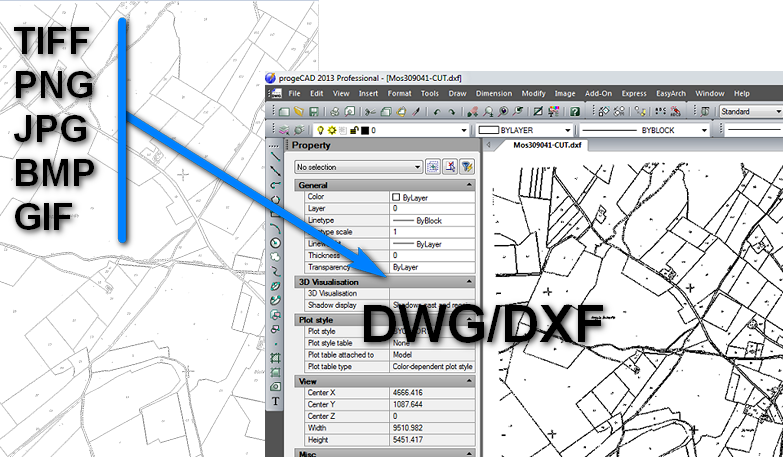

WinTopo is a high quality tool for converting raster images to vector data.






Simple procedure to convert an image:

NOTE: It's recommended to use TIF images in high definition.
  1. Do one of the following:
    • choose Add-on > Raster to Vector WinTopo
    • type wintopo
  2. Menu File > Open Image...
  3. Menu Vector > One-Touch Vectorisation
  4. Wait for the end of the procedure
  5. Save the resultant vectors using the command "Save vector As"
  6. Open the saved DXF file in progeCAD by Open command


For further information please refer to the WinTopo user guide in the WinTopo HELP Menu
