Slope lines

Menu: Add-On > Slope Lines

Ribbon: Add-On > Slope Lines

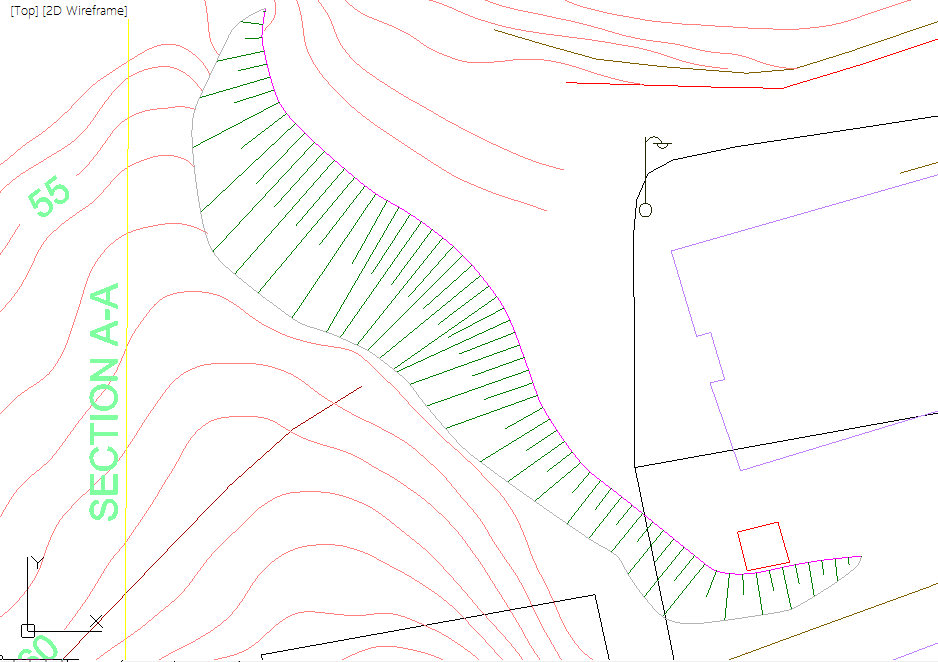

These functions allow to convert to a Slope Lines existing Polylines, Splines and areas between level curves.

Dynamic Slope Allows to create Slope Lines in one area contained between 2D Polylines

Create a Solpe line Allows to generate Slope Lines on single Lines, Polylines

Convert Spline to Slope Allows to generate Slope Lines on Spline

Tell me about...

Dynamic Slope

Create a Solpe line

Convert Spline to Slope

1. Create a Slope line
2. Dynamic Slope
3. Convert Spline to Slope
