Joining entities
Two or more entities can be joined at their common endpoints into a single two-dimensional or three-dimensional entity. Entities that can be joined depend on the entity type and also which method you choose for joining:
• Single source entity — Select a single source entity to limit the types of entities that can be joined to it. For example, if the source entity is a line, only lines can be joined to it.
• Multiple entities — Select multiple entities at once and the order in which you select entities doesn’t matter. For example, if the first entity you select is a line, you can join arcs, polylines, 3D polylines, or splines to it, which is not possible when selecting a single source entity.
The following table describes the rules that apply when joining entities.
|
Joining entities |
|
Source entity |
Entities to join to the source entity |
Rules |
Resulting entity |
|
Line |
Lines |
The lines must be collinear, but they can have space between their endpoints. |
Line or polyline |
|
Arc |
Arcs |
The arcs must have the same center and radius, but they can have space between their endpoints. The Close option draws a circle. |
Arc or circle |
|
Polyline |
Lines, arcs, polylines |
The entities must be contiguous and coplanar. |
Polyline |
|
3D polyline |
Any linear or curved entity |
The entities must be contiguous, but can be non-coplanar. |
3D polyline or spline |
|
Elliptical arc |
Elliptical arcs |
The elliptical arcs must have the same minor and major axes and be coplanar, but they can have space between their endpoints. The Close option draws an ellipse. |
Elliptical arc or ellipse |
|
Helix, spline |
Any linear or curved entity |
Entities must be contiguous, but can be non-coplanar. |
Spline |
The Edit Polyline command can also join entities and polylines.
For more details, see Joining polylines.
To join entities by specifying a source entity first
1 Do one of the following to choose Join (
):
• Select Join from the ribbon or the menu.
• On the Modify toolbar, click the Join tool.
• Type join and then press Enter.
2 Select the first entity, then press Enter.
3 Select additional entities, then press Enter when done.
|
|
||
|

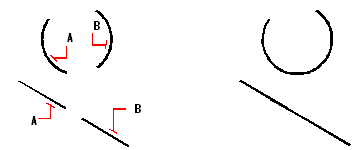

Select the first arc or line (A), and then select the second arc or line (B). |
|
Result. |
To join entities by specifying multiple entities at once
1 Do one of the following to choose Join (
):
• Select Join from the ribbon or the menu.
• On the Modify toolbar, click the Join tool.
• Type join and then press Enter.
2 Select each entity you want to join into a single entity, then press Enter when done.
The Overkill command can also combine entities.
If a drawing has overlapping or duplicate entities that you want to combine, for example polylines with too many vertices, you can use the Overkill command to clean up the drawing.
