Hatch Patterns dialog box

Select a hatch pattern from the ANSI, ISO, Other Predefined, or Custom tab.

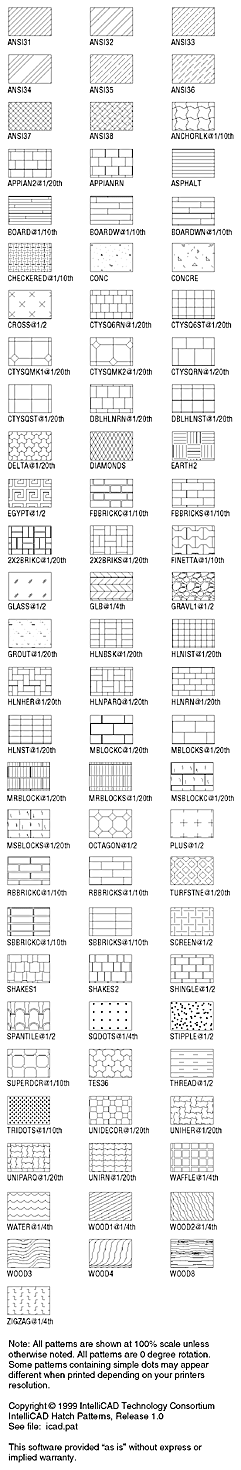

The following are samples of hatch patterns that are available with progeCAD in the file icad.pat, as well as in Hatch_patterns.dwg. You can use these patterns to hatch areas you specify in your drawings. For a sample of ISO hatches, see ISO Hatch Patterns.
