Tapering solid faces

To taper a solid face

   1   Do one of the following to choose Taper Face ():

    On the ribbon, choose Draw 3D > Taper Face (in Solid Editing).

    On the menu, choose Modify > Solid Editing > Taper Faces.

    On the Solids Editing toolbar, click the Taper Face tool.

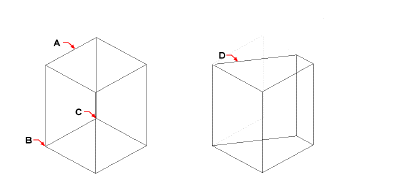

   2   Select the entity with the face you want to taper.

   3   Select the face(s) to taper, and press Enter.

   4   Specify a base point.

   5   Specify another point along the axis.

   6   Specify a taper angle.
