Rotating solid faces

To rotate a solid face

   1   Do one of the following to choose Rotate Face ():

    On the ribbon, choose Draw 3D > Rotate Face (in Solid Editing).

    On the menu, choose Modify > Solid Editing > Rotate Face.

    On the Solids Editing toolbar, click the Rotate Face tool.

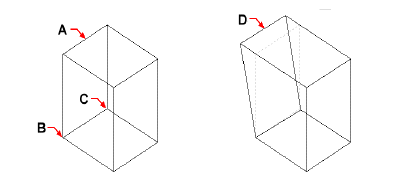

   2   Select the entity with the face you want to rotate.

   3   Select the face(s) to rotate, and press Enter.

   4   Specify a base point.

   5   Specify another point on the rotation axis.

   6   Specify the rotation angle.
