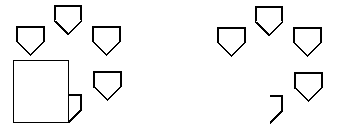

Turning wipeout frames on or off

Each wipeout has a frame along its boundary. Wipeout frames can be turned on or off for any drawing. When wipeout frames are on, you can select and modify wipeouts. You may want to turn off wipeout frames when its time to print.

To turn wipeout frames on or off

   1   Do one of the following to choose Wipeout ():

    On the ribbon, choose Home > Wipeout (in Annotation) or Annotate > Wipeout (in Markup).

    On the menu, choose Draw > Wipeout.

    On the Draw toolbar, click the Wipeout tool.

    Type wipeout and then press Enter.

   2   Choose Frames.

   3   Choose On or Off.

You can also turn wipeout and image frames on or off using a single command.
Type tframes to turn all wipeout and image frames in the drawing on or off. Or use the IMAGEFRAME and WIPEOUTFRAME system variables.
